PIAGGIO VESPA
SUPER SPORT 90 - 90cc
AUTHENTIC

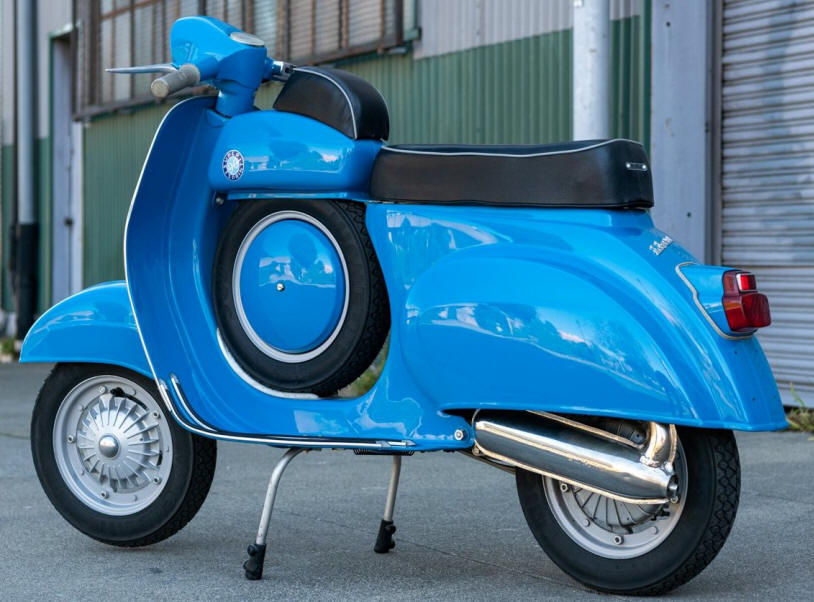

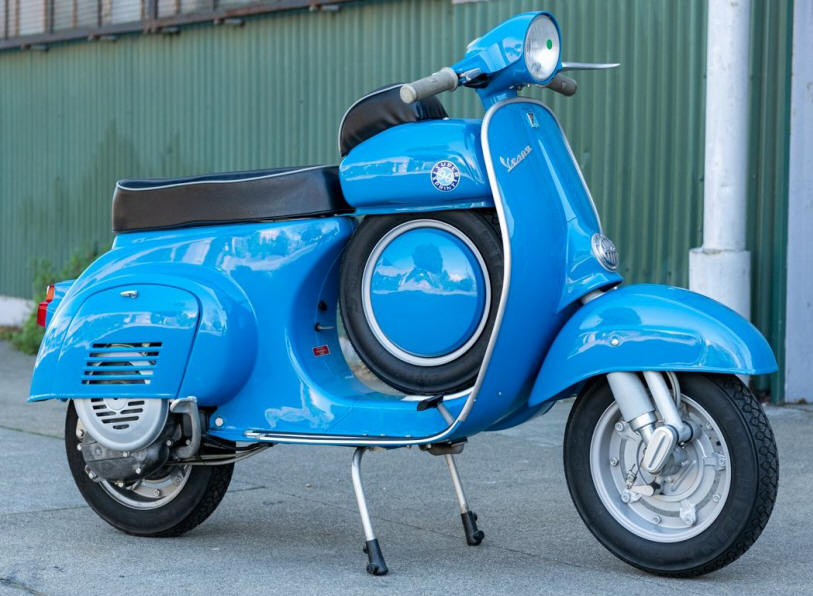

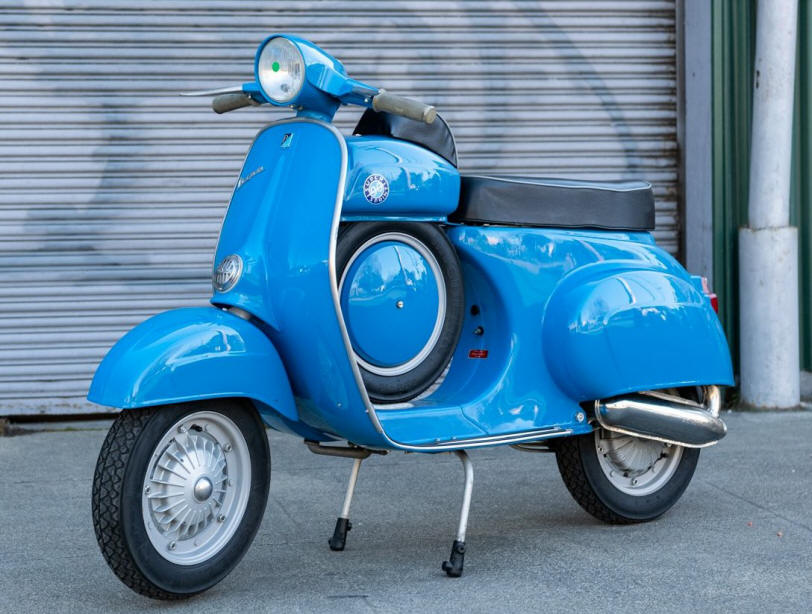

The 1966 Vespa Super Sprint 90 is one of the rarest and most distinctive
small-frame Vespas ever produced by Piaggio. Created as a sporting
interpretation of the small-frame range, the 90 SS features a narrow
streamlined leg-shield, low sports handlebar and its unmistakable

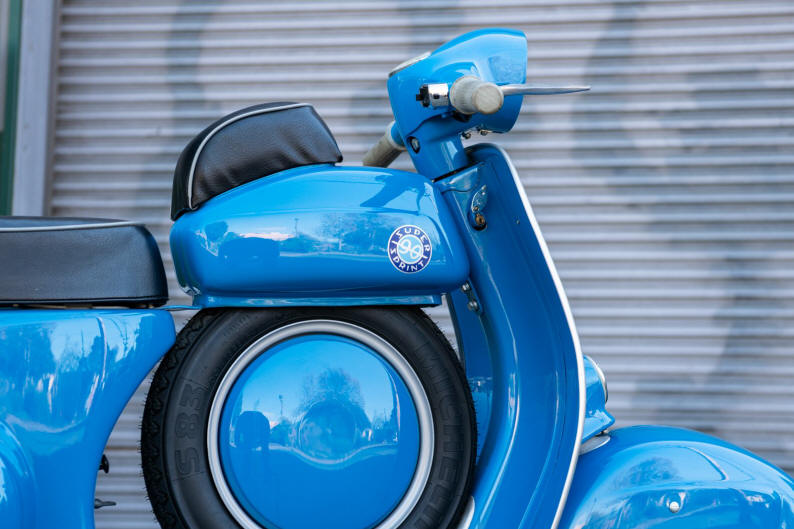

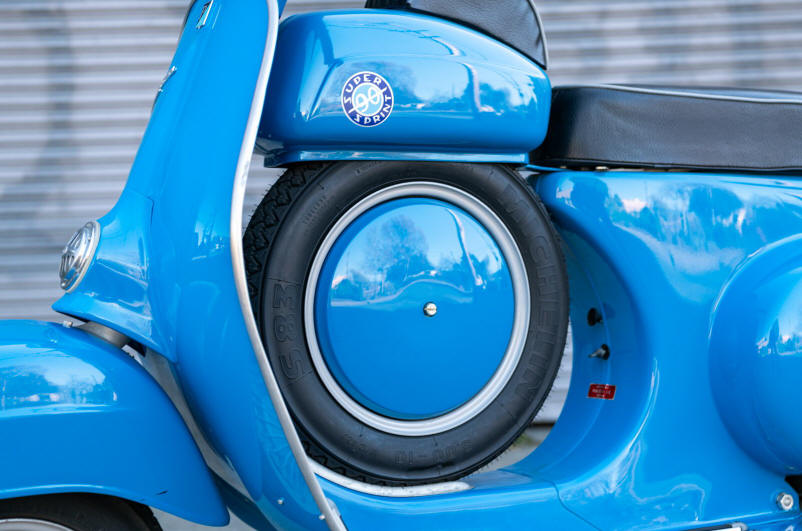

centrally mounted spare wheel beneath the padded dummy tank.

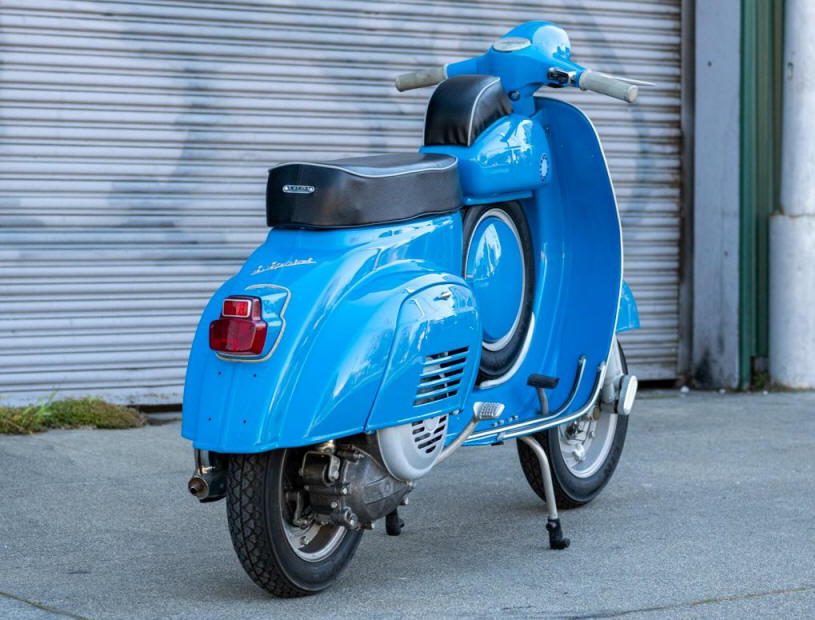

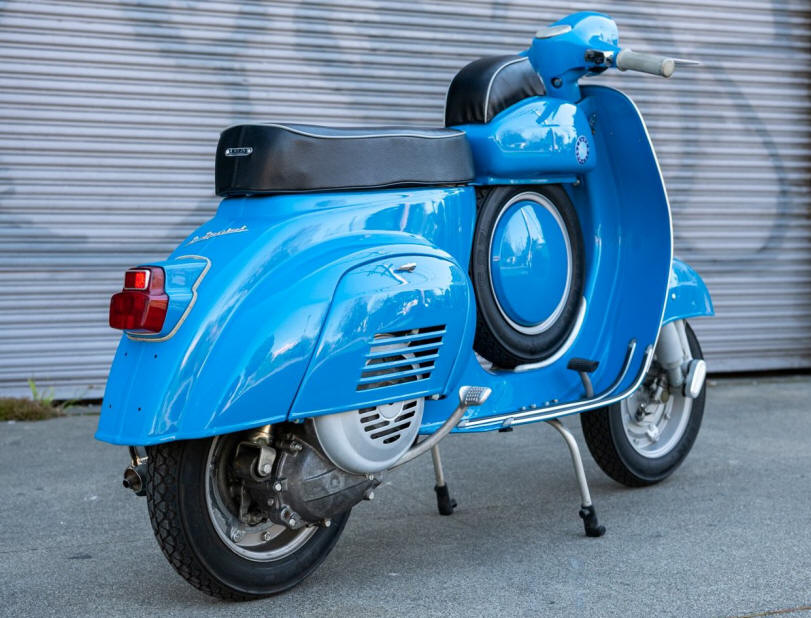

This blue example has been RESTORED and preserves the characteristic
sporting proportions and compact design that made the Super Sprint 90
a collector's icon. With only a little over 5,000 examples produced
between 1965 and 1971, the model remains exceptionally desirable among
Vespa collectors.
Year
1966
Model
Super Sprint 90
Model Code
V9SS1T
Color
Blue
Condition
RESTORED
Stock Number
HCH09
Origin
Made in Italy
USD 3,750
Enquire About This Scooter →
Technical Details
Manufacturer
Piaggio
Model
Vespa 90 Super Sprint
Model Code
V9SS1T
Engine Code
V9SS1M
Production
1965–1971
1966 Frame Range
V9SS1T 2263–4876
Total Production
Approx. 5,309 units

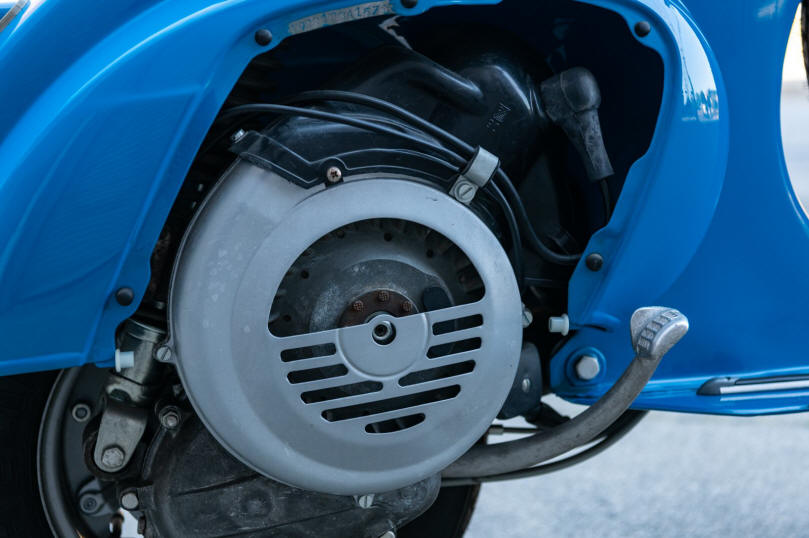

Engine Type
Single-cylinder, air-cooled, 2-stroke
Induction
Rotary / disc valve
Displacement
88.5 cc
Bore × Stroke
47 × 51 mm
Compression Ratio
8.7 : 1
Carburetor
Dell'Orto SHB 16/16
Main Jet
82
Slow Running Jet
38
Throttle Valve
No. 2
Starter Jet
50
Maximum Power
Approx. 6 hp @ 6,000 rpm
Transmission
4-speed constant mesh
Primary Drive
24/61
Gear Ratios
1st 14.74 · 2nd 9.80 · 3rd 7.06 · 4th 5.31
Clutch
Wet multi-plate
Lubrication
2% oil mixture
Ignition
Flywheel magneto / contact breaker and coil
Ignition Timing
Approx. 19° BTDC
Breaker Gap
0.3–0.5 mm
Electrical System
6V
Stator Output
Approx. 30W
Cooling
Forced air
Starting System
Kick start
Frame Type
Small-frame pressed-steel monocoque

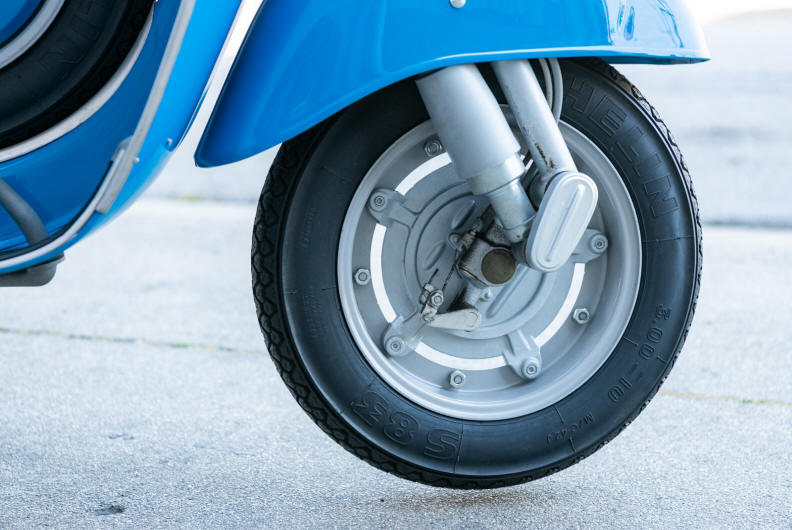

Front Suspension
Leading-link fork with coil spring and hydraulic shock absorber
Rear Suspension
Coil spring with hydraulic shock absorber
Front Brake
Ventilated aluminium drum
Rear Brake
Ventilated aluminium drum
Wheel Size
10-inch
Tire Size
3.00 × 10
Fuel Tank
Approx. 5 litres
Wheelbase
1,160 mm
Length
1,650 mm
Width
550 mm
Seat Height
Approx. 745 mm
Weight
Approx. 77 kg
Maximum Speed
Approx. 93 km/h
Special Features

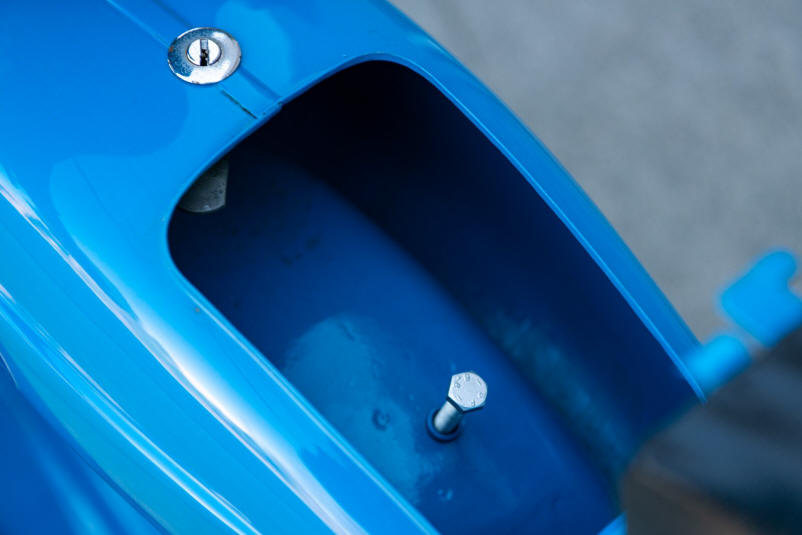

Central spare wheel and integrated dummy-tank storage box
