INNOCENTI LAMBRETTA
TV175 SERIES III - 175cc
1964 · BLUE
AUTHENTIC
The TV175 Series III is one of Innocenti's most distinctive touring Lambrettas of the 1960s. Introduced as the final generation of the TV175, it combined the elegant Series III body design with a larger 175cc engine and upgraded braking and mechanical components.

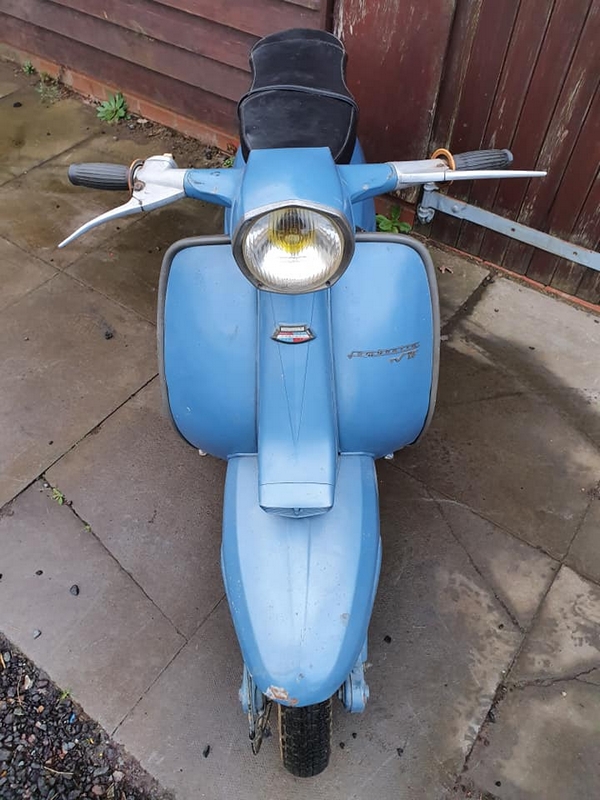

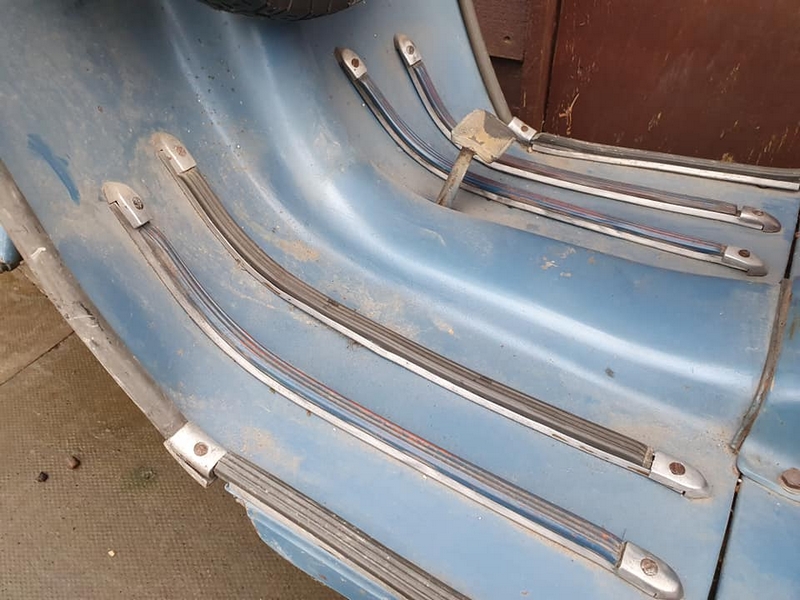

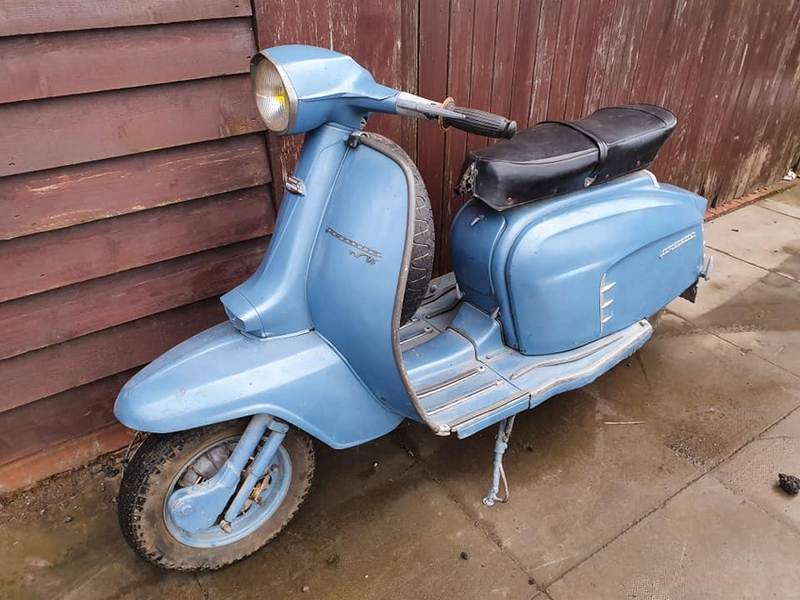

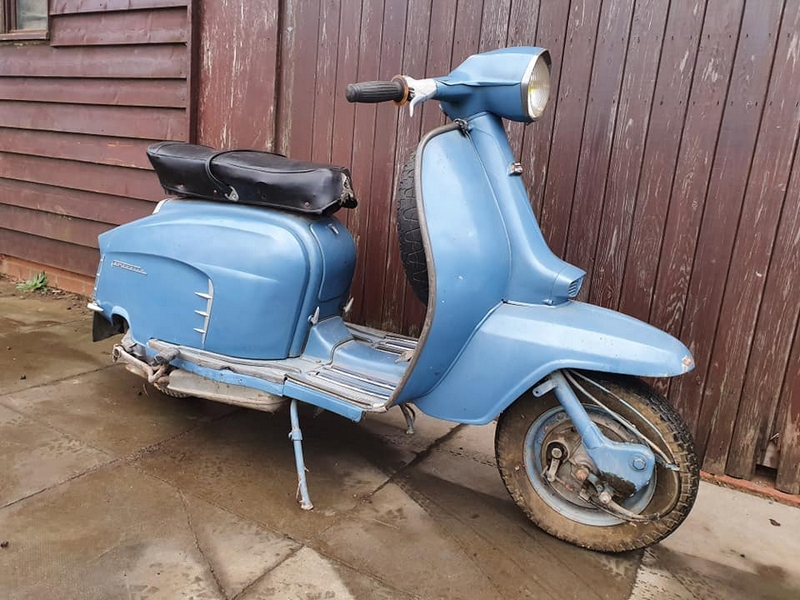

This 1964 example is offered AS IS, giving the buyer the opportunity to preserve, develop or restore the scooter according to their own requirements.
Manufacturer
Innocenti Lambretta
Model
TV175 Series III - 175cc
Year
1964
Color
Blue
Condition
AS IS
Stock Number
HCLA014
Origin
Made in Italy
USD 2,350
Enquire About This Scooter →
Technical Details
Manufacturer
Innocenti
Model
TV175 Series III
Production
March 1962 – October 1965
Engine
Single-cylinder, 2-stroke, air-cooled
Induction
Piston ported
Displacement
175cc
Bore × Stroke
62 × 58 mm
Compression Ratio
7.5:1
Carburettor
Dell'Orto SH 1/20
Main Jet
106
Idle Jet
50
Maximum Power
8.75 hp @ 5,300 rpm
Transmission
4-speed manual, hand controlled
Clutch
Multi-disc clutch in oil bath
Primary Drive
Duplex chain
Ignition
Contact breaker and points
Ignition Advance
22°–24° BTDC
Electrical System
6 volt
Fuel / Oil Mixture
4%
Engine Oil
SAE 90 · 600cc
Cooling
Forced-air cooling
Brakes

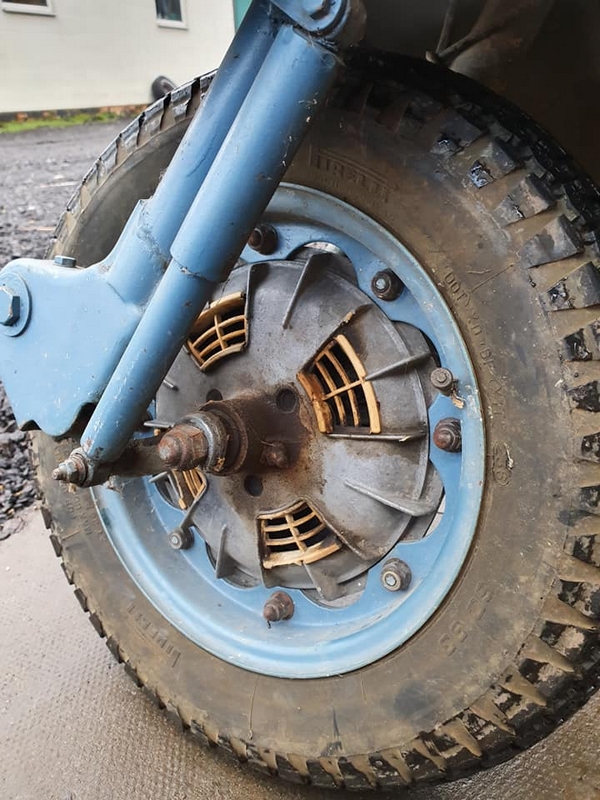

Front inlaid disc / rear finned drum
Tyres
3.50 × 10
Fuel Tank
8 litres + 0.5 litre reserve
Fuel Consumption
Approx. 41 km/L
Dry Weight
Approx. 110 kg
Wheelbase
Approx. 1,290 mm
Overall Length
1,800 mm
Overall Width
700 mm
Overall Height
1,030 mm
Top Speed
Approx. 91–93 km/h
